X Series ombyggnadssats

115 kr
Quantity
Checkout Secure

Free Delivery Over 2500kr

1 Year Warranty

Följande text ej översatt för närvarande.

Kontakta oss vid behov 08-226565

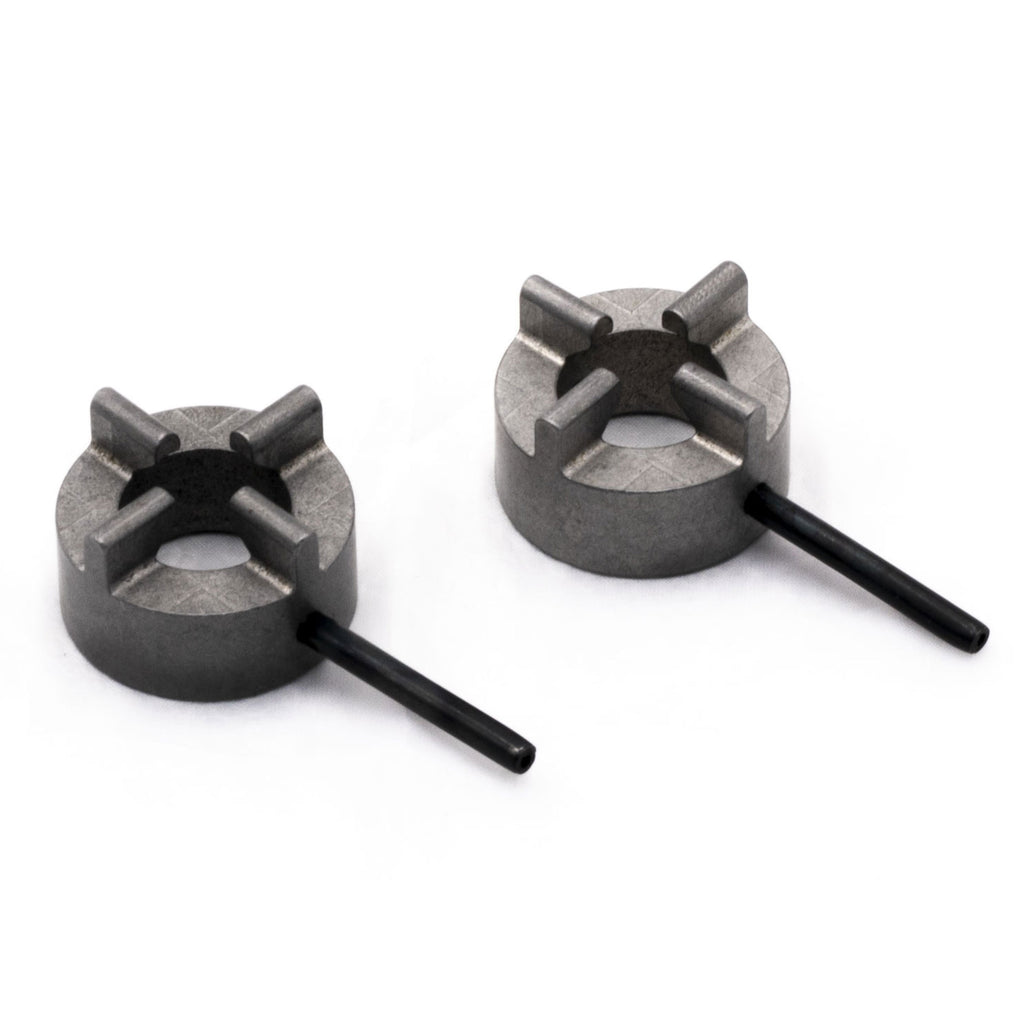

The conversion kit comes complete with 2 Four Tang Drive Dogs and 2 spirol pins.

The drive dogs are supplied complete with the spirol pins that secures the part to the motor and axle.

To replace the drive dog, you will first need to remove the old one. This is best performed as follows:

  • With the trolley folded, place it upside down on a soft surface to avoid scratches.
  • Using a 3mm pin punch (with a flat end, do not use a pointed centre punch), knock out the old pin and remove the drive dog.
  • Align the new drive dog with the hole through the axle and motor stub axle, and drive through the new pin with a hammer. Be careful not to damage the motor with the hammer.

Följande text ej översatt för närvarande.

Kontakta oss vid behov 08-226565





The conversion kit comes complete with 2 Four Tang Drive Dogs and 2 spirol pins.

The drive dogs are supplied complete with the spirol pins that secures the part to the motor and axle.

To replace the drive dog, you will first need to remove the old one. This is best performed as follows:

  • With the trolley folded, place it upside down on a soft surface to avoid scratches.
  • Using a 3mm pin punch (with a flat end, do not use a pointed centre punch), knock out the old pin and remove the drive dog.
  • Align the new drive dog with the hole through the axle and motor stub axle, and drive through the new pin with a hammer. Be careful not to damage the motor with the hammer.
